Ductile Iron Machinery Parts, sand casting

0.00
0.00

Description
Ductile Iron Machinery Parts, sand casting
Quick Details


Place of Origin:Liaoning, China                                           Brand Name: According to Customers' Needs
Model Number:Sand Casting                                              Material:Steel, Iron,Auminum,Vermicular cast iron
Certification:ISO9001: 2008                                               Dimensions:Customized Sizes, Drawing
Surface Treatment:Sand Blasting                                Application:Auto/Valve/Machinery/Agricultural parts, Industry
Process:Investment casting for Ductile Iron Machinery Parts          Standard:Customers' Drawings
Heat Treatment:Quenching                                                Surface Roughness: Ra1.6
Coating: Zinc oxide or Anti-rust oil                                       Machining Tolerance: +/-0.10mm

Supply Ability
S   Supply Ability:6000 Ton/Tons per Month Sand Casting
Packaging & Delivery
Pa  Packaging Details 25 Days After Receiving Deposit Port DALIAN
就

P   Product Description
Ductile Iron Machinery Parts, sand casting

Liaoning Tengfei foundry is specialized in manufacturing various kinds of Ductile Iron Machinery Parts,Cast Iron Tractor Parts,Sand Casting Circle,Ductile Cast Iron Compressor Bracket Casting,Cast Steel Auto Parts and Nodular Cast Iron Excavator Spare Parts.


Casting Production Process：
Sand Casting,Shell Casting,Investment Casting,Automatic Molding,Green Sand Casting, Resin Sand Casting,Vacuum casting,Gravity Casting,Low pressure casting

Material grade：Ductile iron,Gray cast iron,Nodular cast iron,Cast iron,S.G. Iron,Vermicular cast iron,Alumium

ISO 1083-2004 350-22,400-10,400-15,400-18,400-18L,500-7,600-3,700-2,800-2,900-2
ASTM A536 60-40-18,60-42-10,65-45-12,70-50-05,80-55-06,80-60-03,100-70-03,120-90-02
JIS FCD400-18,FCD450-10,FCD500-7,FCD600-3,FCD700-2,FCD800-2
DIN  GGG-35,GGG-40,GGG-50,GGG-60,GGG-70,GGG-80
EN1563 EN-GJS-350-22,EN-GJS-400-18-LT,EN-GJS-400-10,
EN-GJS-400-15,EN-GJS-400-18,EN-GJS-500-7,EN-GJS-600-3,EN-GJS-700-2,EN-GJS-800-2,EN-GJS-900-2
BS2789 350/22,400/18,420/12,450/10,500/7,600/3,700/2,800/2,900/2
AS1831 T150,T200,T250,T300,T350,T400
ΓOCT 7293-1985 Bч35,Bч40,Bч45,Bч50,Bч60,Bч70,Bч80
GB QT400-18,QT450-10,QT500-7,QT600-3,QT700-2,QT800-2

Material grade：Gray cast iron,Cast iron,Grey iron

ISO 100,150,200,250,300,350
ASTM A48 No.20,No.25,No.30,No.40,No.45,No.50,No.55,No.60
JIS FC100,FC150,FC200,FC250,FC300,FC350
DIN GG10,GG15,GG20,GG25,GG30,GG35
EN1563 EN-GJL-100,EN-GJL-150,EN-GJL-200,EN-GJL-250,EN-GJL-300,EN-GJL-350
BS2789 Grade 100,Grade 150,Grade 180,Grade 220,Grade 260,Grade 3000,Grade 350
ΓOCT 7293-1985 Γч10,Γч15,Γч18Γч20,Γч21,Γч24,Γч25,Γч30,Γч35
GB HT100,HT150,HT200,HT250,HT300,HT350

Ductile iron as a high-strength cast iron material,since the overall performance is close to steel,mainly used for high requirements on strength, toughness and wear resistance some parts.For example,Car,tractor,Internal combustion engine crankshaft,Camshaft,exhaust manifold,Machinery Parts and so on.

Our testing workshop also has a spectrum analyzer, metallographic microscope,tensile testing machine,ow temperature impact testing machine, X-ray flaw detector, magnetic particle flaw detector,ultrasonic flaw detector,three coordinate measuring instrument,image measuring instrument and so on.So that ensure the accuracy of the material composition, mechanical properties and high-precision machining size.

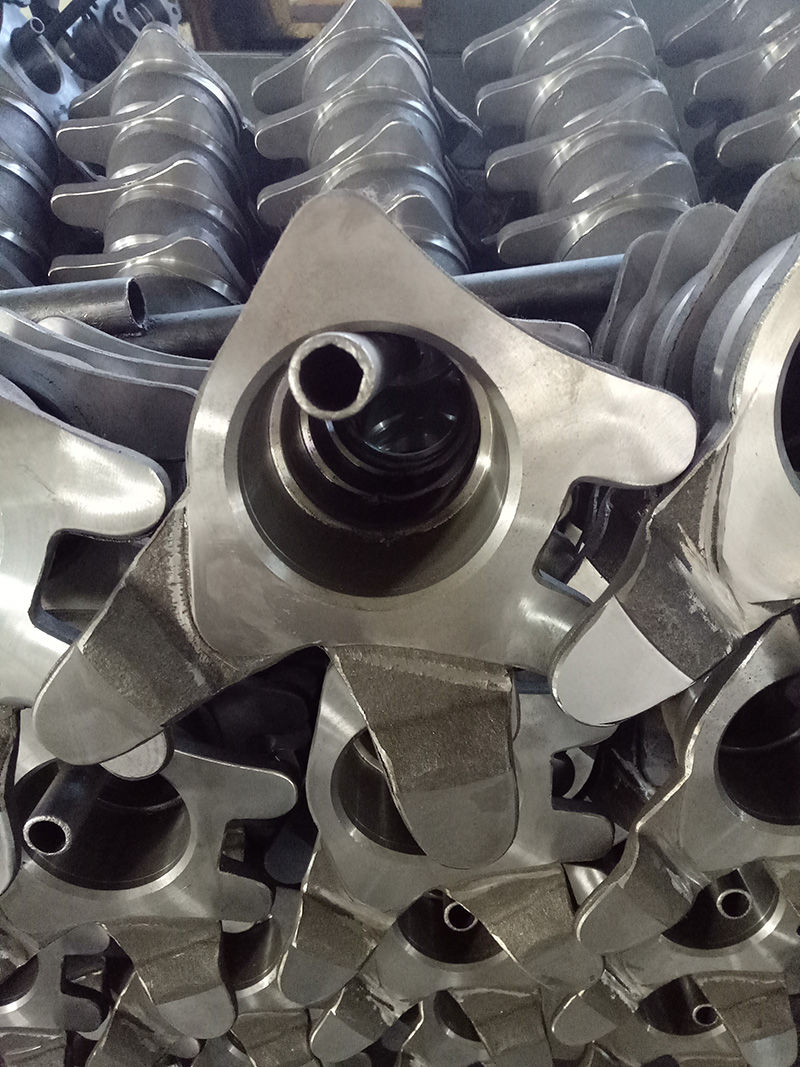

sand-casting-Ductile-Iron-Machinery-Parts
